HPTS-2D-TC Tiltmeter
The HPTS-2D-TC is a high-resolution, dual-axis tilt sensor engineered for accurate angular monitoring in demanding environments. With a compact IP65-rated enclosure, temperature compensation, and sub-microdegree resolution, it is ideal for applications including foundation movement, structural deflection, and long-term geotechnical monitoring.

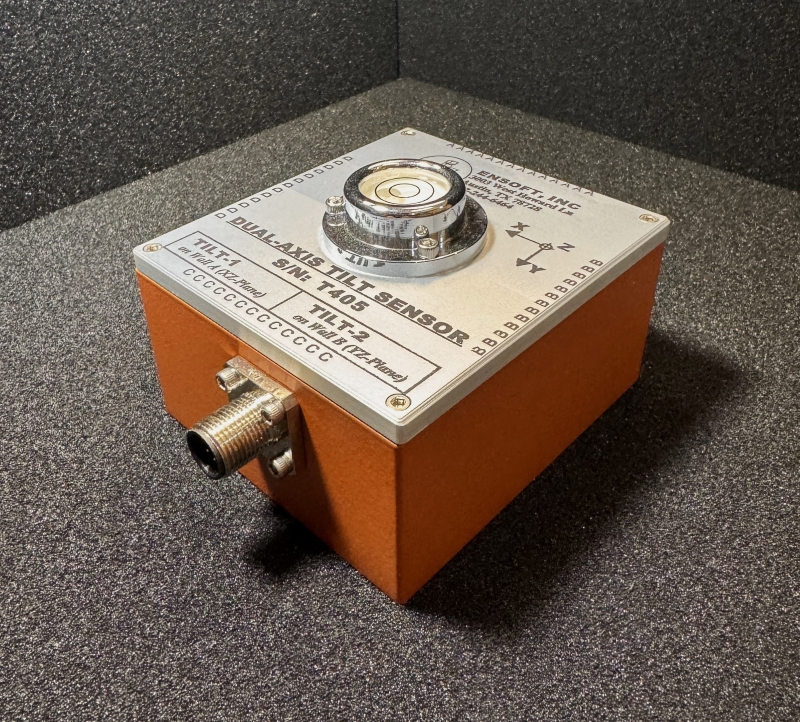

HPTS-2D-TC dual-axis tilt sensor
Key Features
- Dual-axis tilt measurement (X and Y)
- Temperature compensated electronics
- High resolution: better than 0.00005°
- ±2° angular range
- IP65 weatherproof enclosure
- Compact, field-ready design (3.5 × 3.2 × 1.9 in. / 89 × 81 × 48 mm)
- Compatible with Ensoft DAQ systems

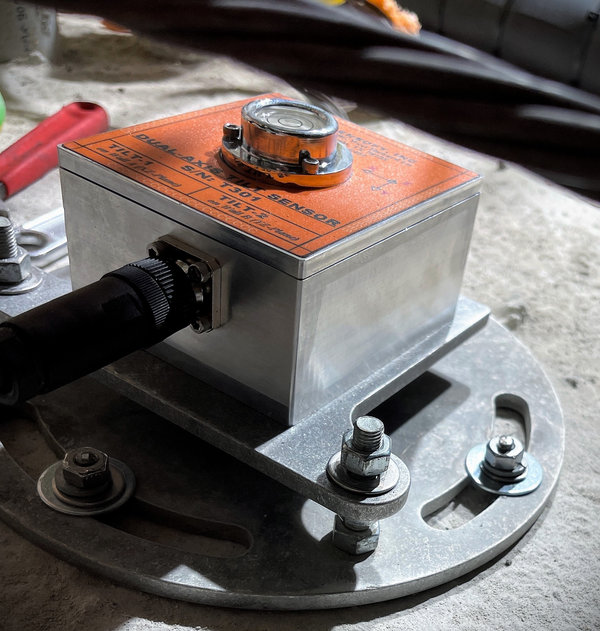

Tilt sensor installed on foundation monitoring system

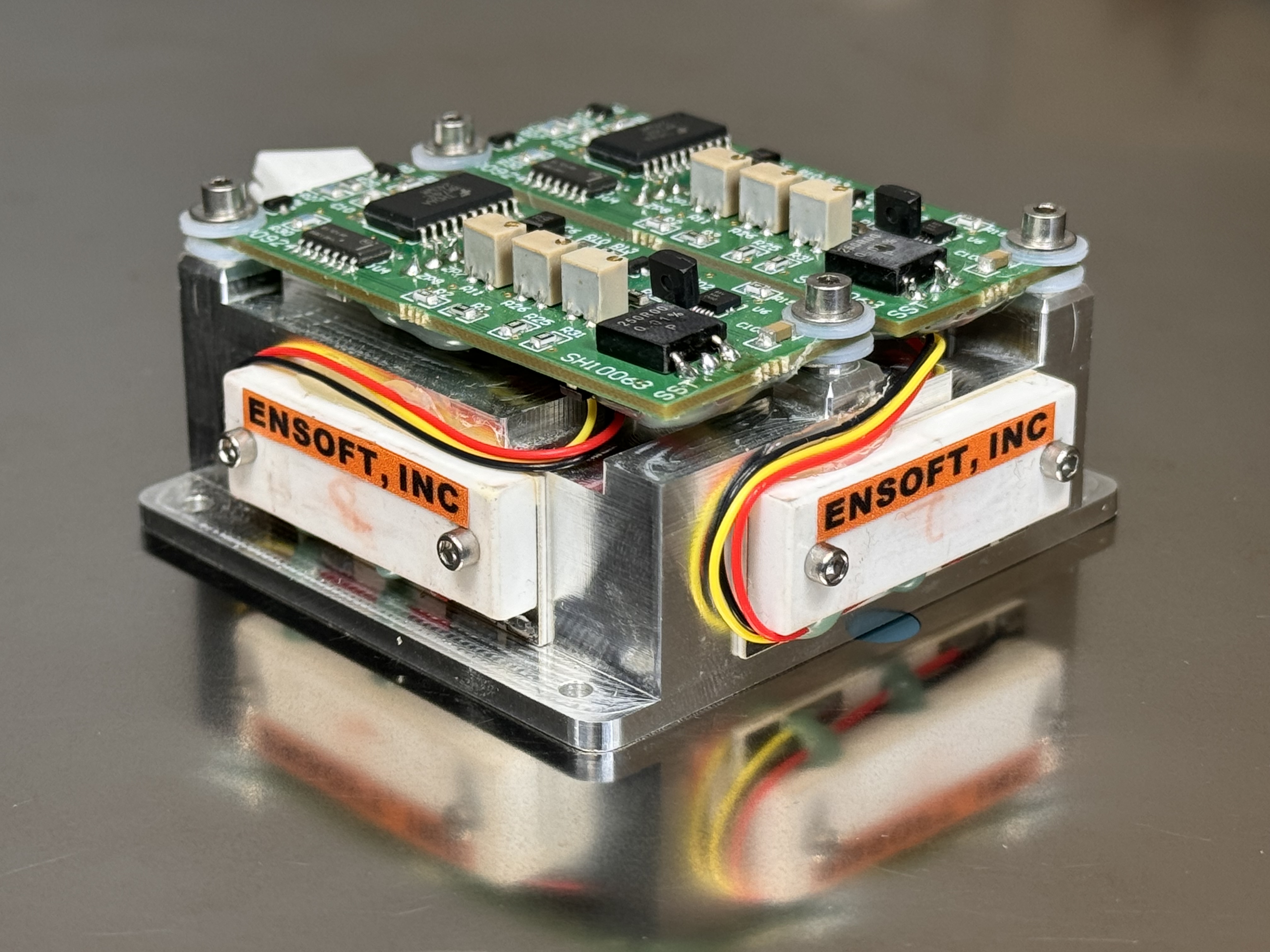

Internal electronics
Technical Specifications
| Parameter | Specification |
|---|---|
| Angular Range | ±2° |
| Resolution | < 0.00005° |
| Scale Factor | 0.0015°/mV |
| Nonlinearity | < 1% FS |
| Temperature Compensation | Kz ± 0.0002°/°C (typ.), Ks 0.04%/°C |
| Output | X-tilt, Y-tilt, Temperature |
| Shock Survival | 10 g (min) |
| Axes | 2 (X and Y) |
| Operating Temp | −4°F to +158°F (−20°C to +70°C) |
| Storage Temp | −22°F to +176°F (−30°C to +80°C) |
| Power Supply | +14 VDC @ ~50 mA |
| Input Impedance | 2.5 MΩ |
| Output Impedance | 250 Ω |
| Enclosure Dimensions | 3.5 × 3.2 × 1.9 in. (89 × 81 × 48 mm) |
| Weight | 1.5 lb (0.68 kg) |
| Environmental Rating | IP65 (weatherproof) |
For CAD models, integration drawings, or bulk ordering inquiries, please contact our team.
